Projects

Engineering work spanning CFD multiphase modelling, aerodynamic design, topology optimisation, SolidWorks CAD, HVAC system engineering, and lean manufacturing analysis.

Featured · MSc Dissertation

// CFD Simulation · ANSYS Fluent · VOF Model

Liquid Sloshing Control
in Road Tanker Trucks

Multiphase CFD simulation of liquid sloshing in partially filled road tankers under emergency braking. ANSYS Fluent with VOF model and a custom C-language UDF. Three baffle configurations compared — analysing peak pressure, free surface behaviour, and wall loading.

• 5-baffle config reduced peak wall pressure by ~52% vs baseline
• VOF free-surface confirmed wave-breaking by baffles
• Mesh independence validated across 3 densities (<2% variation)
• UDF applied sinusoidal 0.8g deceleration over 1.5s braking event

ANSYS FluentVOF ModelUDF — C LanguageMultiphase Flowk-ε Turbulence

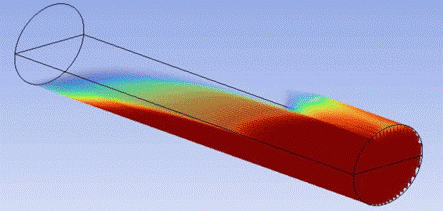

CFD — Sloshing Pressure Field (ANSYS Fluent)

Peak Pressure Reduction

52%

5-Baffle vs Baseline

Mesh Elements

28k

Validated Mesh

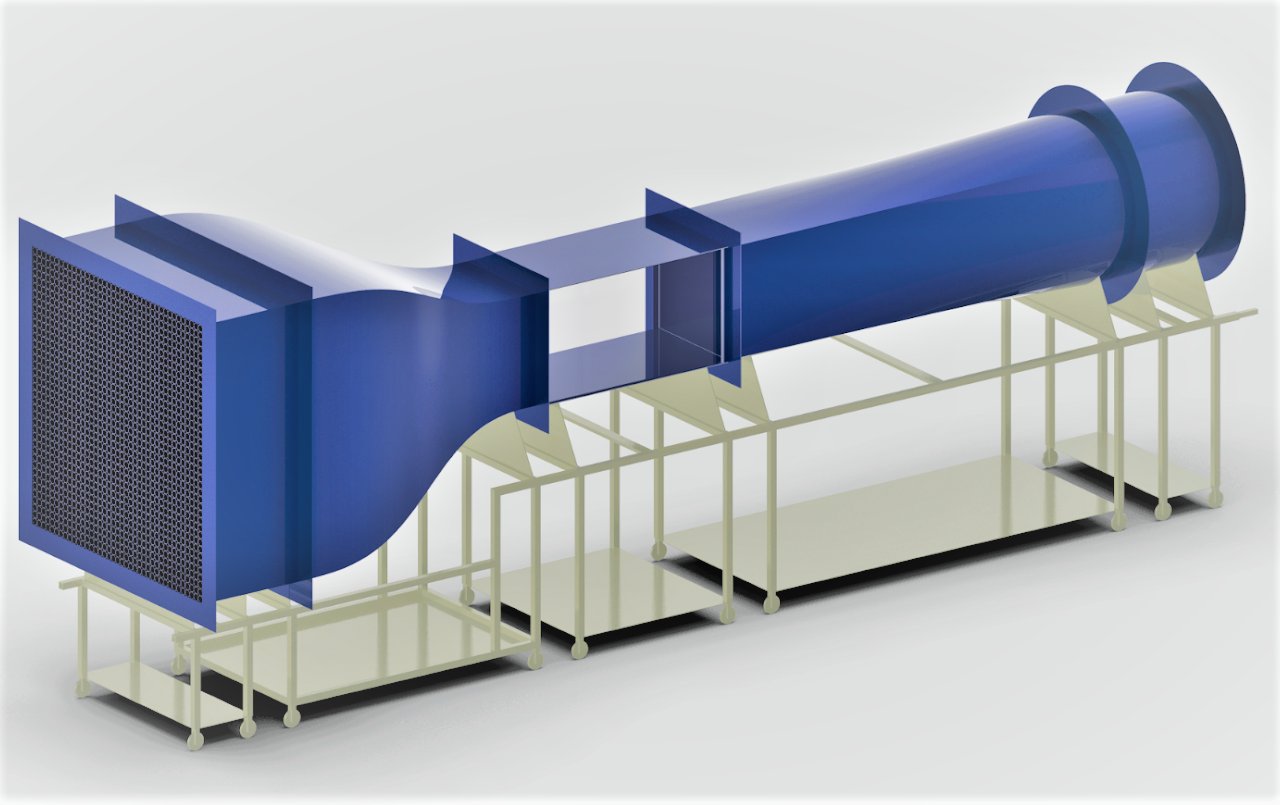

SolidWorks — Open-Circuit Wind Tunnel

BSc Thesis · Aerodynamics · Conference

Design & Simulation of a Low-Subsonic Wind Tunnel

Designed a low-subsonic open-circuit wind tunnel from aerodynamic first principles — contraction ratio, diffuser geometry, honeycomb specs, CFD validation of flow uniformity. Full 3D model in SolidWorks.

Conference paper presented at ICMERE 2019, CUET, Chittagong

SolidWorksCFDAerodynamicsICMERE 2019

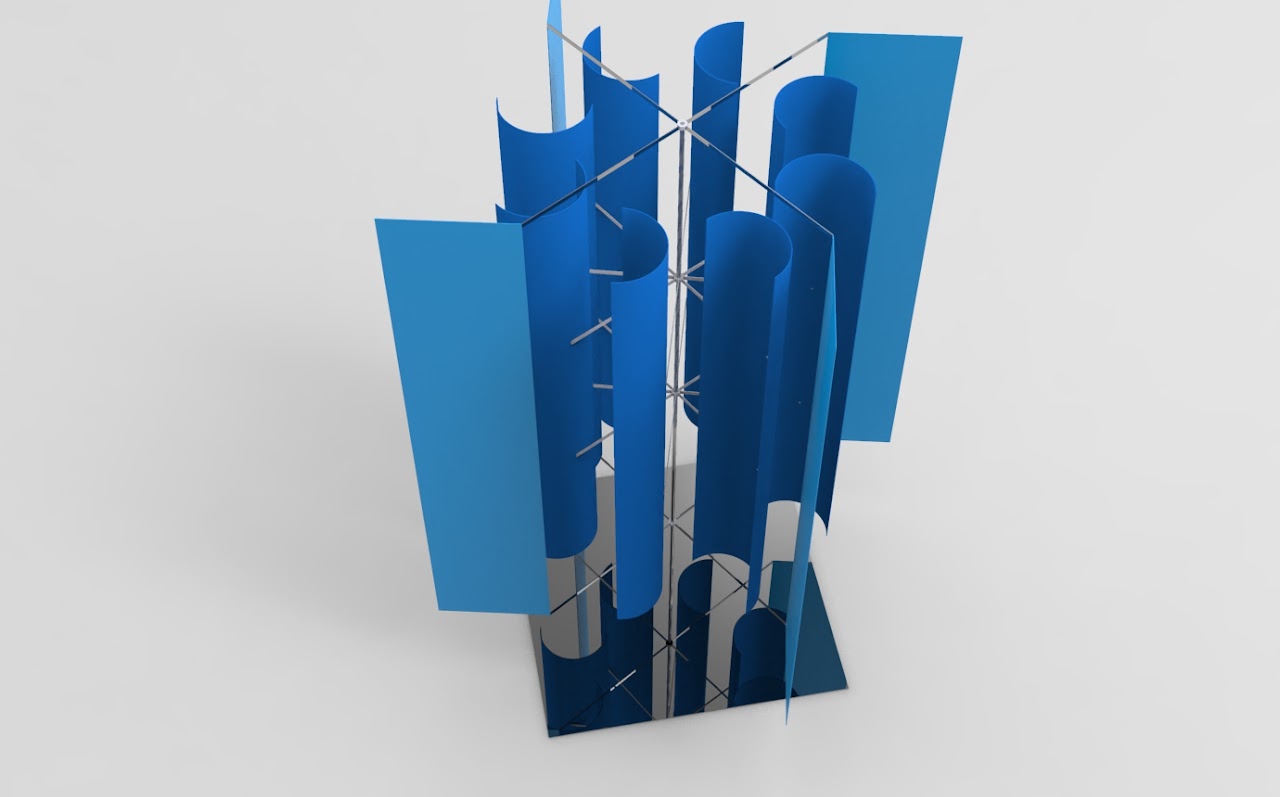

SolidWorks — VAWT Assembly

CAD Design · Renewable Energy

Vertical Axis Wind Turbine (VAWT)

Full 3D assembly model of a VAWT in SolidWorks. Blade geometry, central shaft, support struts, and base mounting. Contributed CAD and design support to university project team.

Complete parametric assembly — available on GrabCAD

View on GrabCAD

SolidWorks3D AssemblyRenewable Energy

FEA · Topology Optimisation · SolidWorks Simulation

Topology Optimisation — Tray Component (Before & After)

SolidWorks FEA static displacement analysis and topology optimisation. Identified low-stress material zones, removed them in the redesign, validated structural equivalence — lightweight design thinking applicable to aerospace manufacturing.

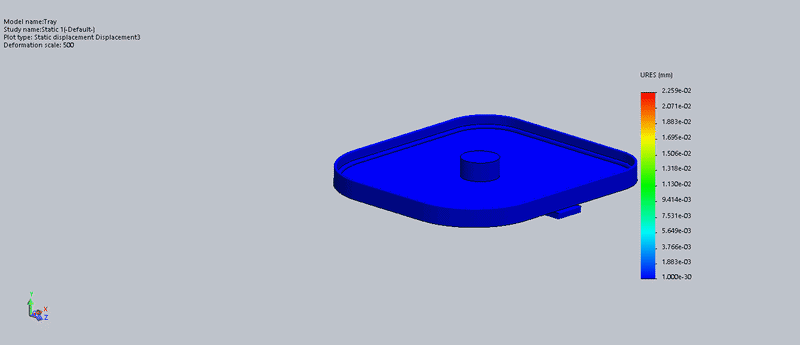

Original Design

Before Topology Optimisation · URES Displacement

Baseline FEA — low-stress zones identified for material removal.

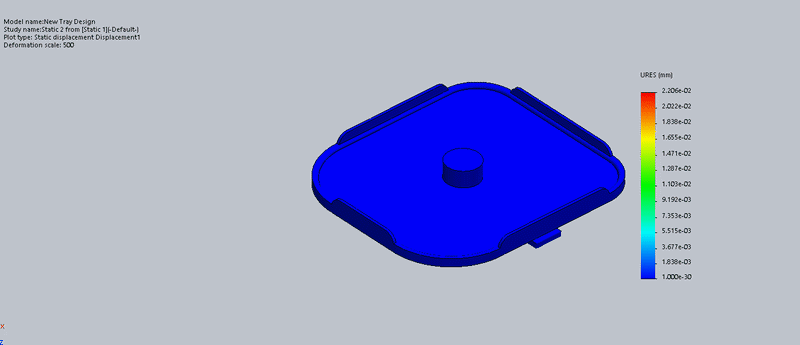

Optimised Design

After Topology Optimisation · Reduced Mass

Material removed from low-stress zones. Performance maintained with reduced mass.

SolidWorks SimulationFEATopology OptimisationStatic Displacement

MSc Coursework · Lean Manufacturing

Lean Business Case — H.E.L.L. TD Tube Machine

Lean manufacturing business case for hydraulic tube production. OEE analysis, VSM current/future state, Pareto and 5-Why root cause analysis, 12-month implementation roadmap with ROI financial model.

Identified 30%+ OEE improvement potential with full phased lean roadmap

Lean ManufacturingVSMOEE5-Why

MSc Coursework · Smart Manufacturing · CAPP

Telepresence Robot — Rapid Manufacturing & CAPP

Rapid manufacturing case study with 3D CAD models and Computer-Aided Process Planning for CNC machining and additive manufacturing routes. Material selection and production cost trade-off analysis.

Comparative CNC vs additive manufacturing CAPP plans

CAD/CAMCAPPAdditive ManufacturingCNC

Industrial R&D · Optical Engineering · Taiwan

Lens Assembly Optimisation — Young Optics Inc.

R&D engineering in automatic lens assembly at Young Optics Inc. Used MTF machine data to identify optical performance gaps. Developed modifications to improve product quality and reduce machine downtime.

Improved lens MTF performance via data-driven R&D cycle

Optical EngineeringMTF AnalysisR&D

3D CAD models and assemblies in SolidWorks — all publicly available and downloadable on GrabCAD.

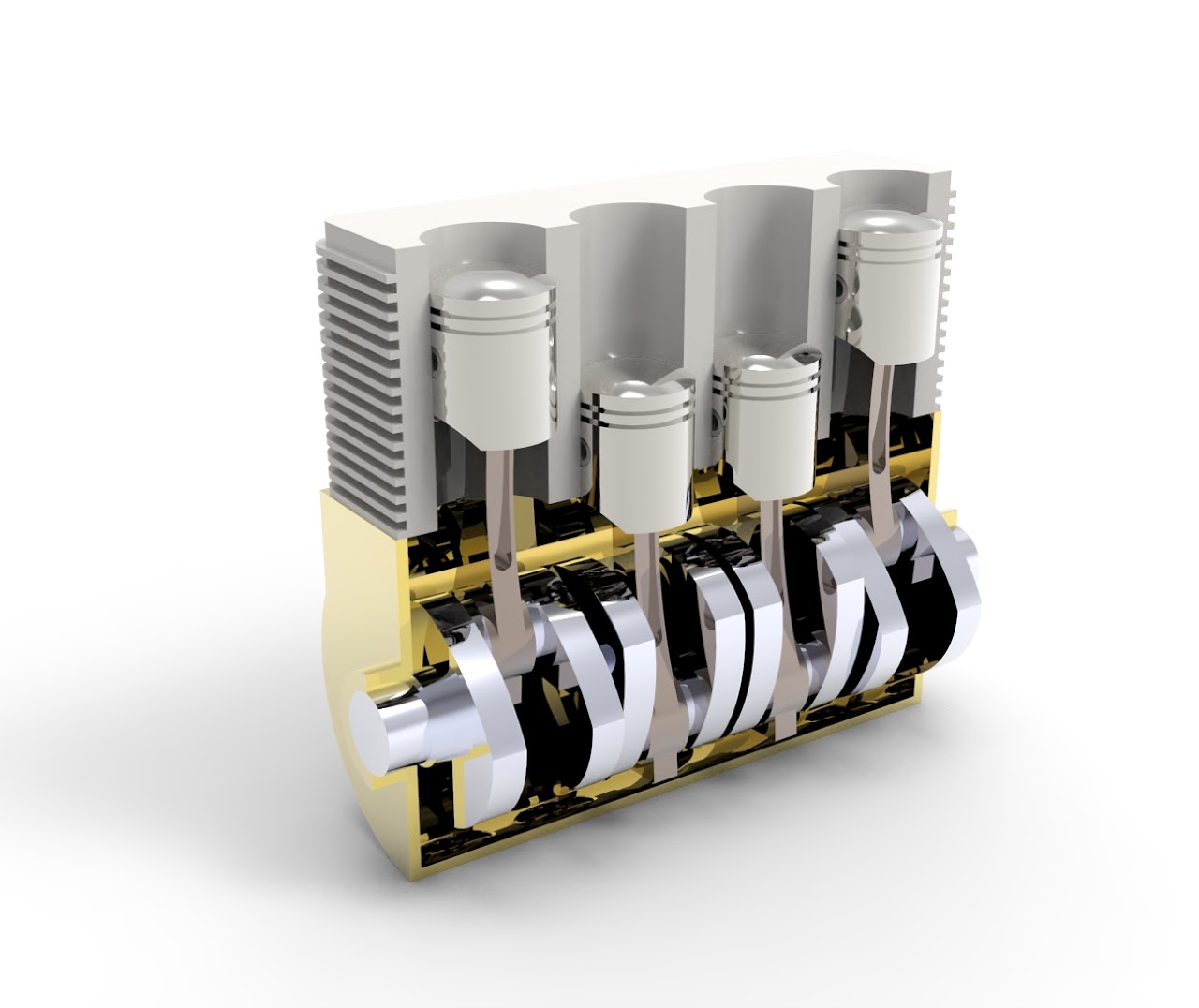

4-Cylinder Engine

Cross-Section Assembly

GrabCAD

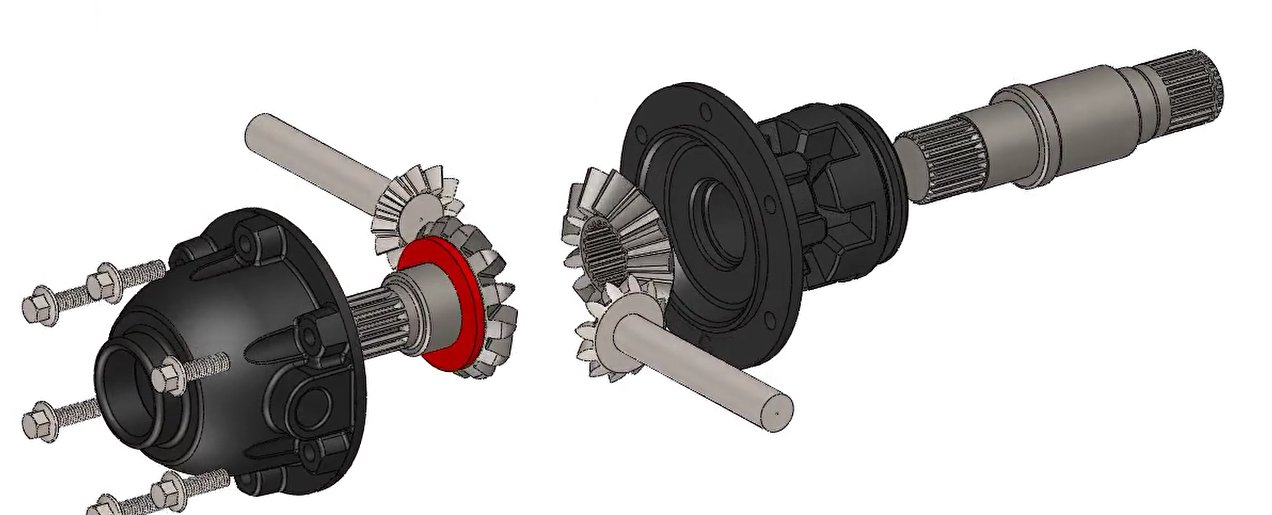

Differential Gear

Exploded View Assembly

GrabCAD

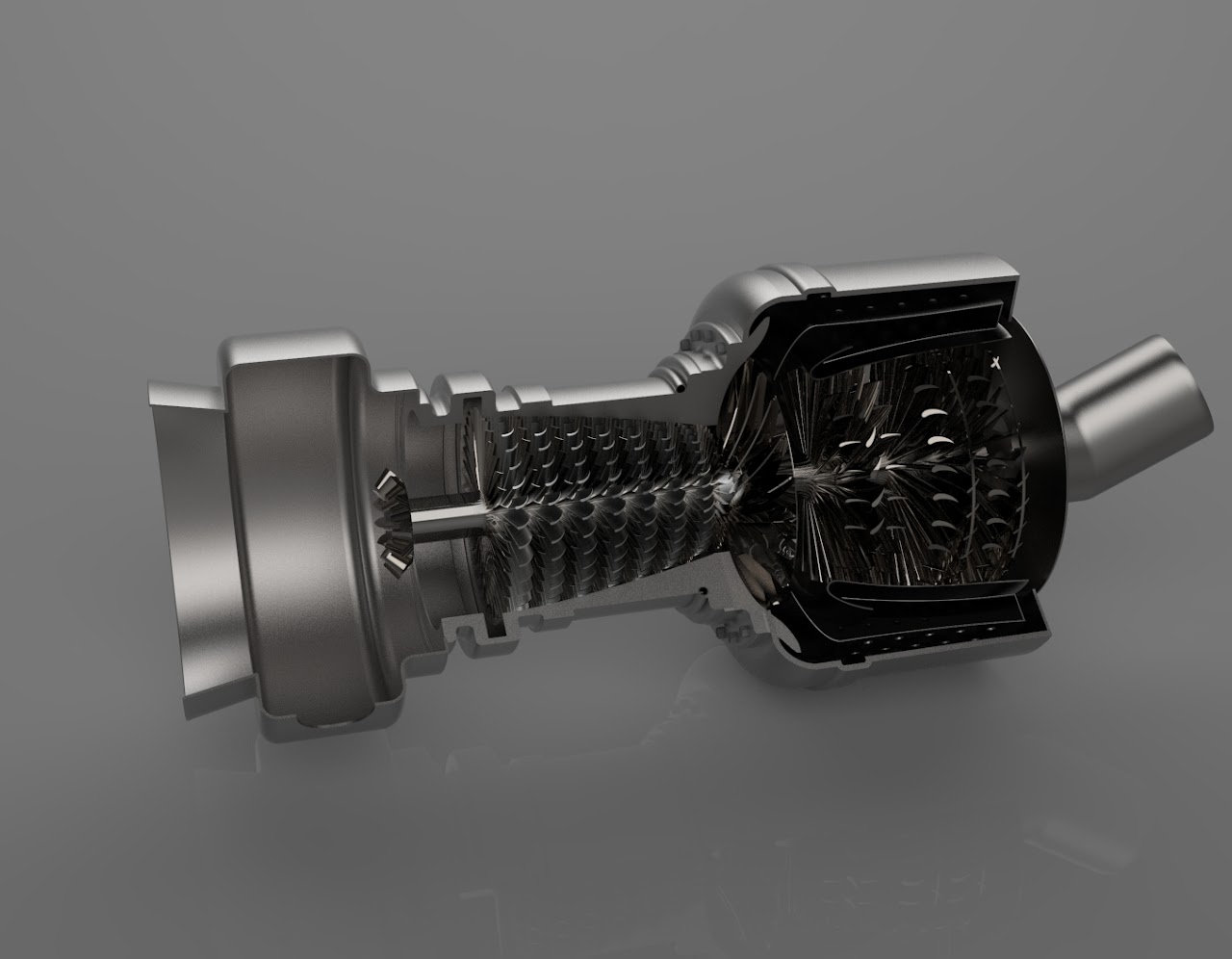

Jet Turbine Engine

Cross-Section Render

GrabCAD

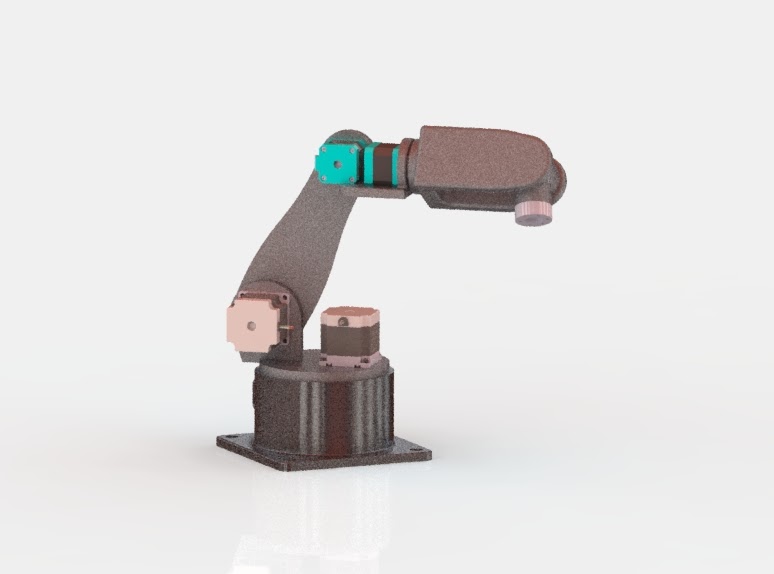

Robotic Arm

6-DOF Assembly

GrabCAD

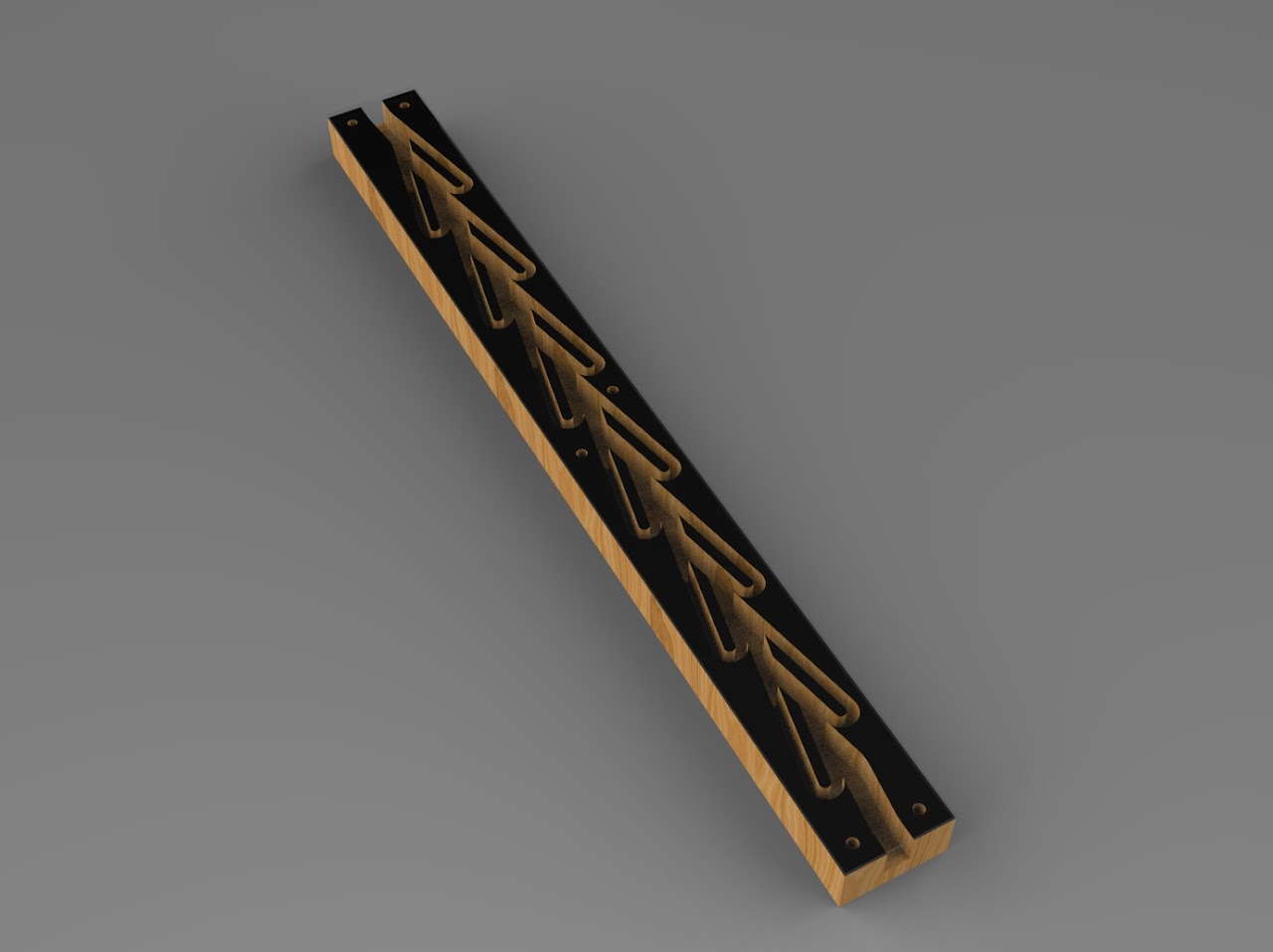

Tesla Valve

Fluidic Diode

GrabCAD
